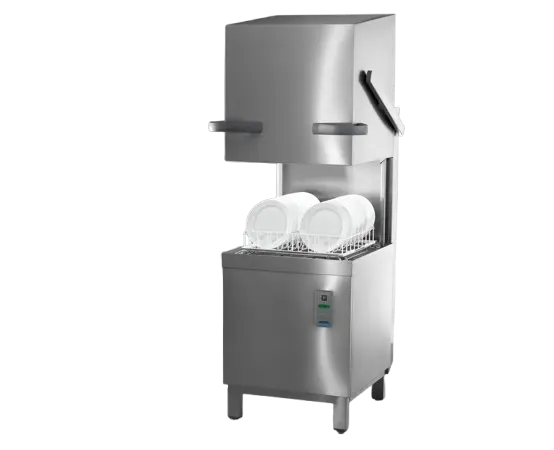

The Winterhalter P 50 is ideal for commercial establishments such as restaurants, cafes, and catering services that require efficient and hygienic dishwashing in a compact space. Its robust construction, user-friendly interface, and energy-efficient design make it a valuable addition to any professional kitchen.
Key Features
- Efficient Cleaning: Two elliptical wash fields at the top and bottom ensure optimal washing quality with maximum coverage.winterhalter.com
- Triple Filtration System: Coarse dirt is caught by a strainer, a fine filter with removable basket handles smaller particles, and a pump inlet filter protects the pump from mechanical damage.
- Self-Cleaning Program: Fully automatic interior cleaning initiated via the operating panel, with user-friendly pictograms guiding manual cleaning stages.
- Thermostop Function: Ensures that the rinse cycle only begins once the boiler has reached the defined temperature, guaranteeing hygienic wash results.
- User-Friendly Operation: Intuitive electronic panel with color-coded display and language-neutral pictograms simplifies operation.
- Automatic Hood Start: Enhances workflow efficiency by starting the wash cycle automatically when the hood is closed.
- Hygienic Design: Smooth, joint-free interior surfaces and deep-drawn tank prevent dirt accumulation and facilitate easy cleaning.
-
Energy Efficiency: Low water consumption per cycle and reduced heating times contribute to operational cost savings.
| Feature | Details |
|---|---|
| Model | Winterhalter P 50 |

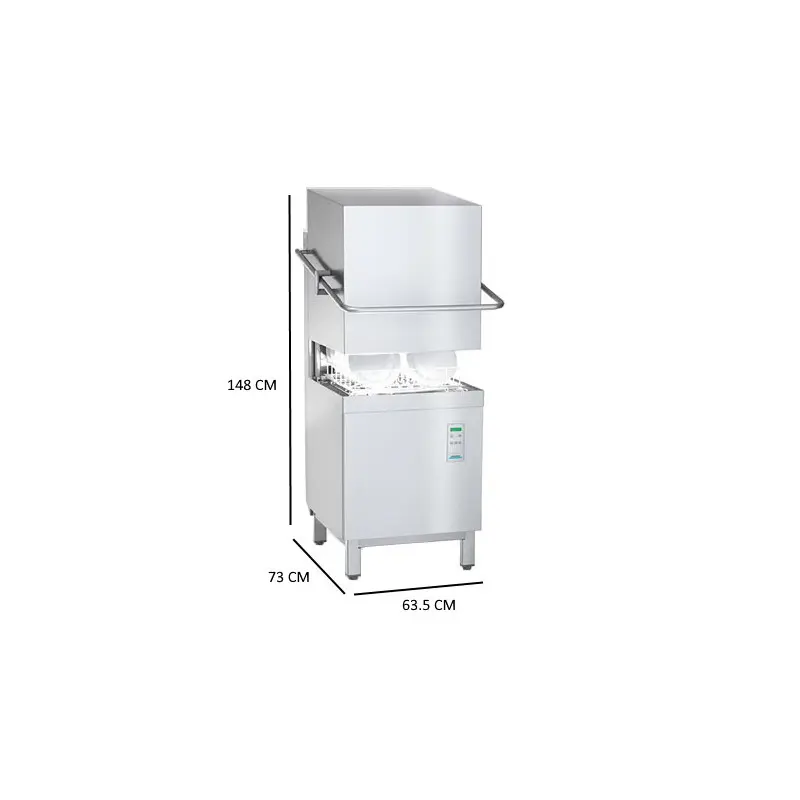

| Dimensions (W x D x H) | 635 x 750 x 1,485 mm |
| Rack Dimensions | 500 x 500 mm |
| Clear Entry Height | 440 mm |
| Tank Capacity | 28 liters |
| Rinse Water Consumption | 2.4 liters per cycle |
| Tank Temperature | 62°C |
| Final Rinse Temperature | 85°C |
| Noise Emission | Max. 63 dB(A) |
| Electrical Connection | 400V / 3N~ / 50Hz |
| Power Consumption | 11.8 kW |
| Weight (Net / Gross) | 98 kg / 123 kg |
| Number of Wash Programs | 2 (Standard and High Temp) |
| Construction | Single-walled hood with double-skinned door |
| Filtration System | Triple filtration system |
| Wash System | Two elliptical wash fields (top and bottom) |
| Self-Cleaning Program | Yes |
| Thermostop Function | Yes |
| Temperature Display | Yes |
| Automatic Hood Start | Yes |
| Operating Interface | Electronic panel with color-coded display |
