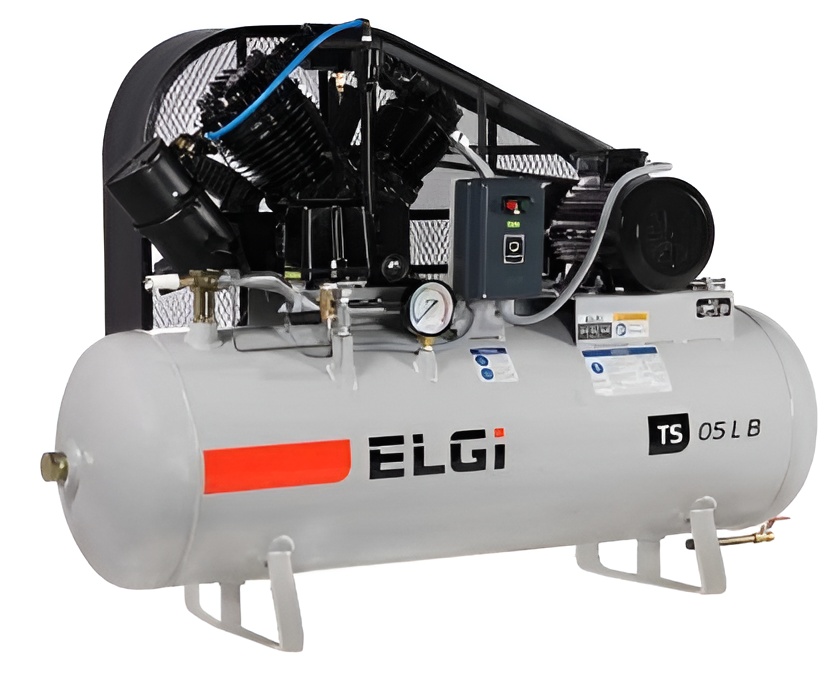

ELGI TS05 LB-12 TM220L – 5 HP Two-Stage Reciprocating Air Compressor | 220 Litre Receiver | Air Cooled
A robust and efficient industrial air compressor designed for high-performance applications. Built with a durable 5 HP motor, large 220-litre receiver tank, and two-stage compression for optimal output and durability.
Product Specifications
| Feature | Details |
|---|---|
| Model | TS05 LB-12 TM-220 LTR |
| Number of Stages | Two Stage |
| Receiver Capacity | 220 Litres |
| Noise Level | 80–84 dB(A) |
| Max. Working Pressure | 12 kg/cm² |
| P.D (Piston Displacement) | 17.7 CFM |
| FAD (Free Air Delivery) | 14.5 CFM |
| Motor Rating | 3.7 kW (5 HP), IE2, 4 Pole Sq. Cage Induction TEFC Motor, 415V, 3 Phase, 50 Hz AC Supply, F Class Insulation, IP55 Protection |
| Starter | DOL (Direct On Line) |
| Cooling Type | Air Cooled |
| Dimensions (mm) | 1590 x 570 x 1085 |
| Net Weight | 240 kg |
