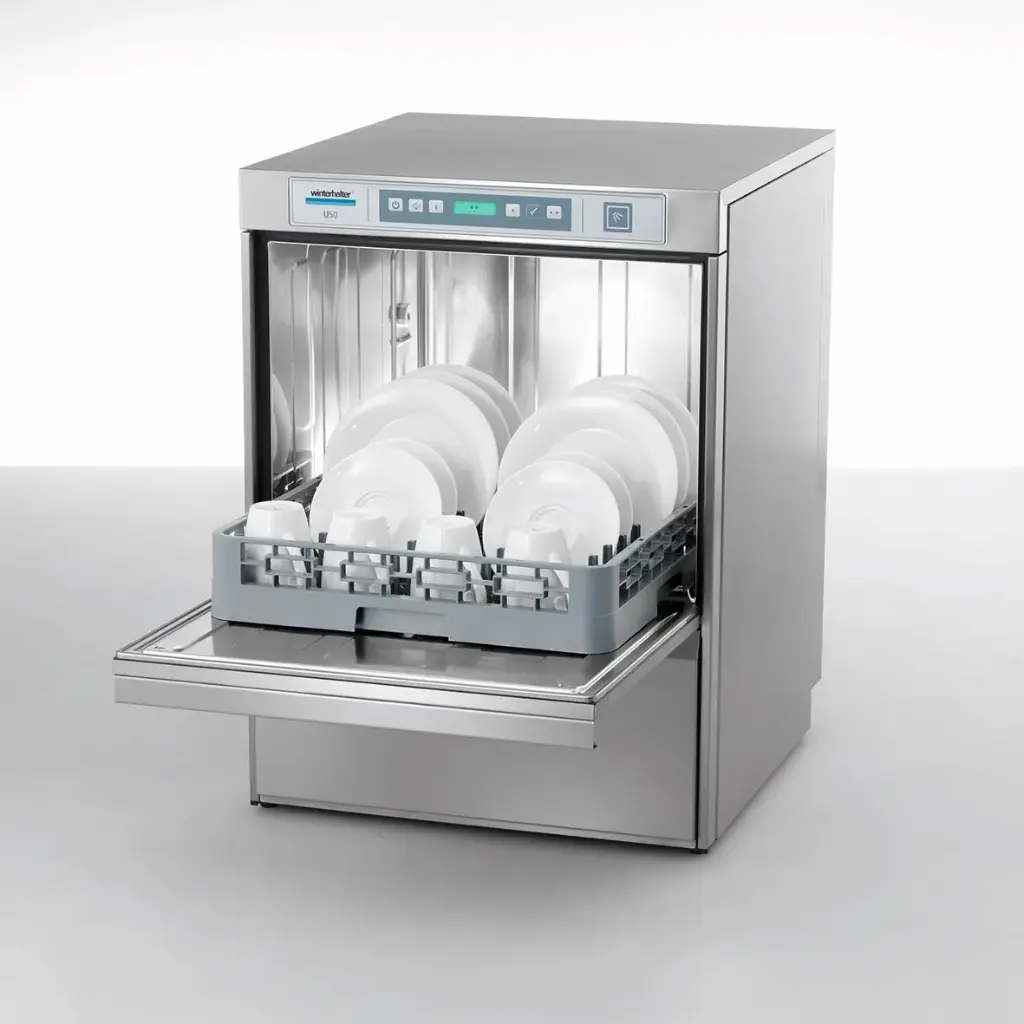

The Winterhalter U 50 is ideal for commercial establishments such as restaurants, cafes, and catering services that require efficient and hygienic dishwashing in a compact space. Its versatile wash programs, user-friendly interface, and energy-efficient design make it a valuable addition to any professional kitchen.
Key Features
- Three Washing Programs: Standard for normal soiling, Intensive for heavy-duty cleaning, and a Short program for peak times, completing a cycle in under 1 minute.
- User-Friendly Operation: Intuitive single-button control with a color-coded display, making it easy to operate even for inexperienced staff.
- Efficient Wash System: Two elliptical wash fields at the top and bottom ensure optimal cleaning performance with maximum coverage.
- Advanced Filtration: A three-stage wash water filtration system keeps the water clean, enhancing wash quality and protecting the machine.
- Self-Cleaning Program: Automatic interior cleaning initiated via the display, with user-friendly pictograms guiding manual cleaning stages.
- Hygienic Design: Deep-drawn tank and hygienic heating element with no hidden corners, reducing dirt accumulation and simplifying cleaning.
- Soft Start Function: Gradual build-up of washing pressure protects delicate dishes during the wash cycle.
- Energy Efficiency: Double-skinned design minimizes heat loss and noise emission, contributing to energy savings.
-
Easy Maintenance: Integrated error management system and simple component access facilitate quick servicing and troubleshooting
| Feature | Details |
|---|---|
| Model | Winterhalter U 50 |
| Dimensions (W x D x H) | 600 x 637 x 855 mm |
| Rack Dimensions | 500 x 500 mm |
| Clear Entry Height | 376 mm |
| Tank Capacity | 15.3 liters |
| Rinse Water Consumption | 2.4 liters per cycle (standard) |
| Tank Temperature | 62°C (standard), 66°C (high temp) |
| Rinse Temperature | 85°C |
| Max Water Inlet Temp | 60°C |
| Water Connection | G ¾” |
| Waste Water Connection | 32 mm |
| Circulating Pump Power | 0.5 kW |
| Total Connected Load | 2.85 kW |
| Operating Voltage | 220-240V / 1N~ / 50Hz |
| Noise Emission | 59 dB(A) |
| Weight (Net / Gross) | 66 kg / 76 kg |
| Number of Wash Programs | 3 (Standard, Intensive, Short) |
| Theoretical Capacity | Standard: 30 racks/hour; High Temp: 20 racks/hour |
| Splash Guard Rating | IP X3 |
